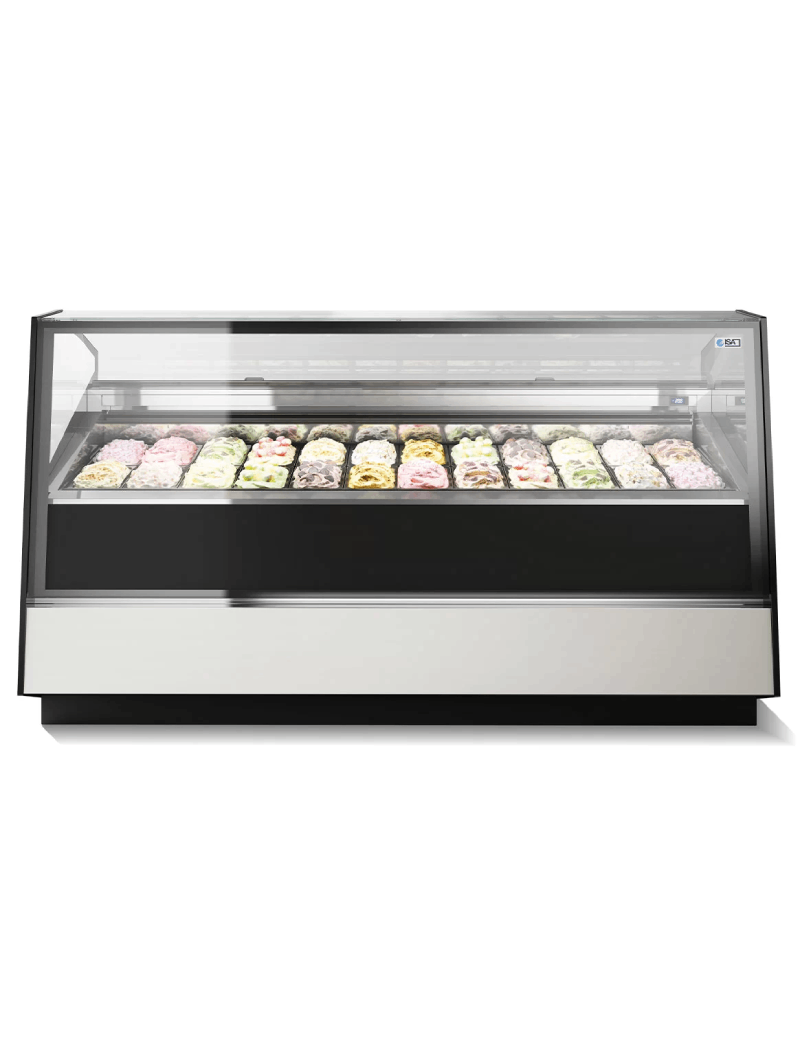

Ice cream display case ISA Stratos

Description

• Stratos is a high-end display cabinet from ISA, offering top-notch technical performance and a design that embodies Italian elegance and style.
• The Plus 1 and Plus 2 configurations feature an intelligent defrosting system utilizing two evaporators, reducing standard defrosting time by 50% and preserving the quality of the gelato.
• The optional Dual Temperature function allows for maximum flexibility in product display management, allowing the cabinet to switch between Ice Cream and Pastry Products with ease, offering seasonal flexibility without taking up additional floor space.

Brochure

Technical Sheet

Specification

Installation:

• Plug-in
• Remote (optional)

Configuration:

• Canalized (optional)
• Dual temperature (optional)

Temperature: -20/+2 °C

Refrigerant: R404a

Refrigeration: Ventilated

Compressor: Hermetic

Defrost: Reverse cycle

Climate class:

• 7 (35 C° / 70% RH)
• 4 (30 C° / 55% RH)

Upper glass: Heated stratified with switch

Front glass: Heated (double)

Side glasses: Heated (double)

Opening system: Servo, bottom-up opening system

Rear closing system:

• Polycarbonate sliding doors
• Self-rolling curtain

Worktop: Solide surface white

Lighting: Led 5700 K

Equipment handling:

• Swivel casters with brake
• Height adjustable feet

Plus.

Single evaporator with double front air out flow. PLUS is the historical and distinctive ventilation of ISA. The display cases with PLUS ventilation are equipped with a single evaporator and double air outlet, front and central, with flow from the customer side to the operator side. The trays are arranged in the display case with an inclination of 11 degrees, allowing better visibility of the displayed product and optimal service ergonomics. This ventilation guarantees perfect preservation of the ice cream, making it more solid on the customer side and easier to serve on the operator side. It is also ideal for popsicles and ice cream on sticks, single portions and cold pastry.

Plus 1.

Double evaporator with single air out rear flow. The display cases with PLUS 1 ventilation are equipped with a double evaporator and a single rear air outlet, with flow from the operator's side to the customer's side. The single air supply allows configuration with a single tray inclined at 3 degrees for the display of cold pastry and single portions. This ventilation, thanks to the high launch of air and adjustable deflectors, is suitable for the presentation of “gelato mountains”, but is also perfect for ice cream on a stick.

Plus 2

Double evaporator with double air out rear flow. The display cases with PLUS 2 ventilation are equipped with a double evaporator and double air outlet, rear and central, with flow from the operator side to the customer side. The combination of the double evaporator and the double air outlet guarantees the perfect distribution of the cold on all the trays. This type of ventilation is suitable for the presentation of “gelato mountains”, ice cream sticks, single portions, and cold pastry.
