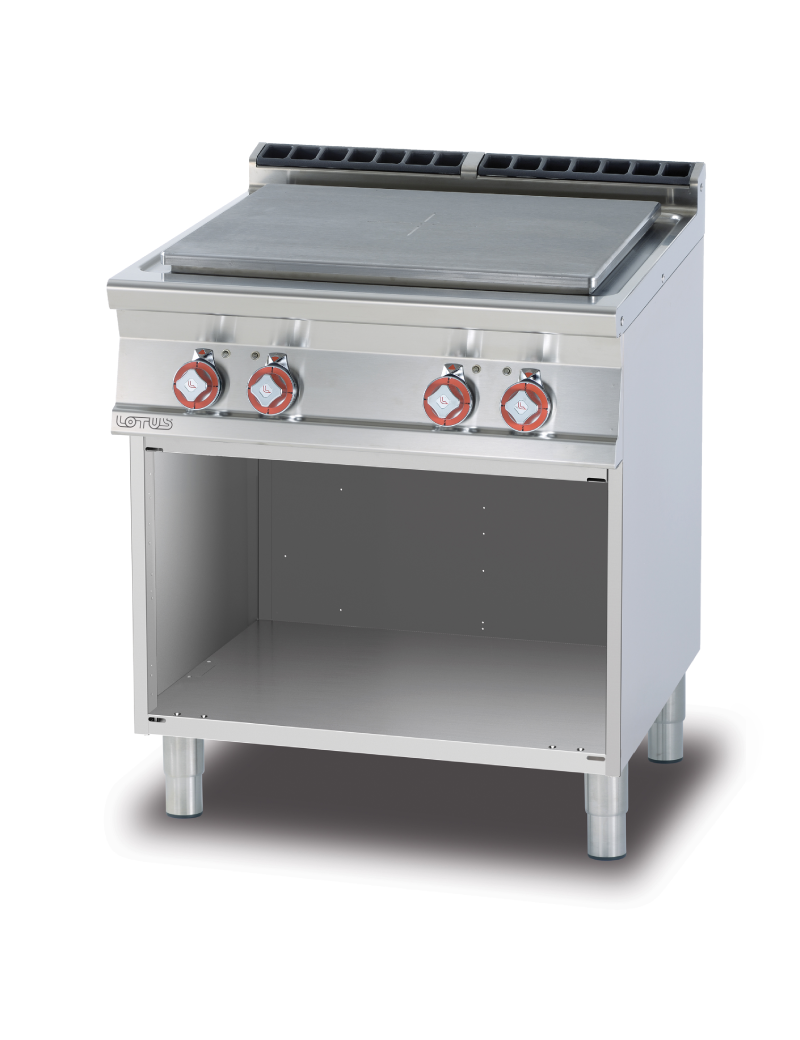

Electric solid top Lotus TP-78ET / TPF-78ET / TPFV-78ET

Description

• Construction - Fabricated using CrNi 18/10 AISI 304 grade Stainless Steel Scotch-Brite Satin polish Finish, incorporating 2mm thick worktop, rounded edges, chromed details, and rear splash back.
• Knobs with waterproof grades IPX5.
• Model - Professional Electric Solid Top on the open cabinet.
• 20mm thick chrome-molybdenum top for the best heat conductivity.
• Four positions thermostatic control to 450degC.
• Maintenance - All serviceable parts are accessible by the easy removal of the front control panel.
• Fittings - Appliance is supplied with adjustable feet.
• TP-78ET model - doors not included.
• TPF-78ET and TPFV-78ET models - large GN 1/1 Ventilated Oven and large GN 2/1 Static Oven with wide doors and timers.

TP-78ET

Solid top on open unit - Plate 70x50 cm - 4 zones (included 1 Head end filler strip mod.TPA-7).

Specification

Dimensions:  80x70,5x90h cm

Electric Power: 10 kW

Voltage: 400V~3N

Frequency: 50/60 Hz

Weight: 121 kg

TPF-78ET

Solid top on traditional electric oven 67x55x34h cm, temp: 50÷300°C, with 1 grid 65x53 cm GN2/1 - Plate 70x50 cm 4 zones (included 1 Head end filler strip mod.TPA-7)

Specification

Dimensions:  80x70,5x90h cm

Electric Power: 15 kW

Voltage: 400V~3N

Frequency: 50/60 Hz

Weight: 170 kg

TPFV-78ET

Solid top on electric fan oven 55x36x34h cm, temp: 50÷300°C, with 1 grid 53x32,5 cm GN1/1 - Plate 70x50 cm 4 zones (included 1 Head end filler strip mod.TPA-7)

Specification

Dimensions:  80x70,5x90h cm

Electric Power: 15,32 kW

Voltage: 400V~3N

Frequency: 50/60 Hz

Weight: 170 kg
