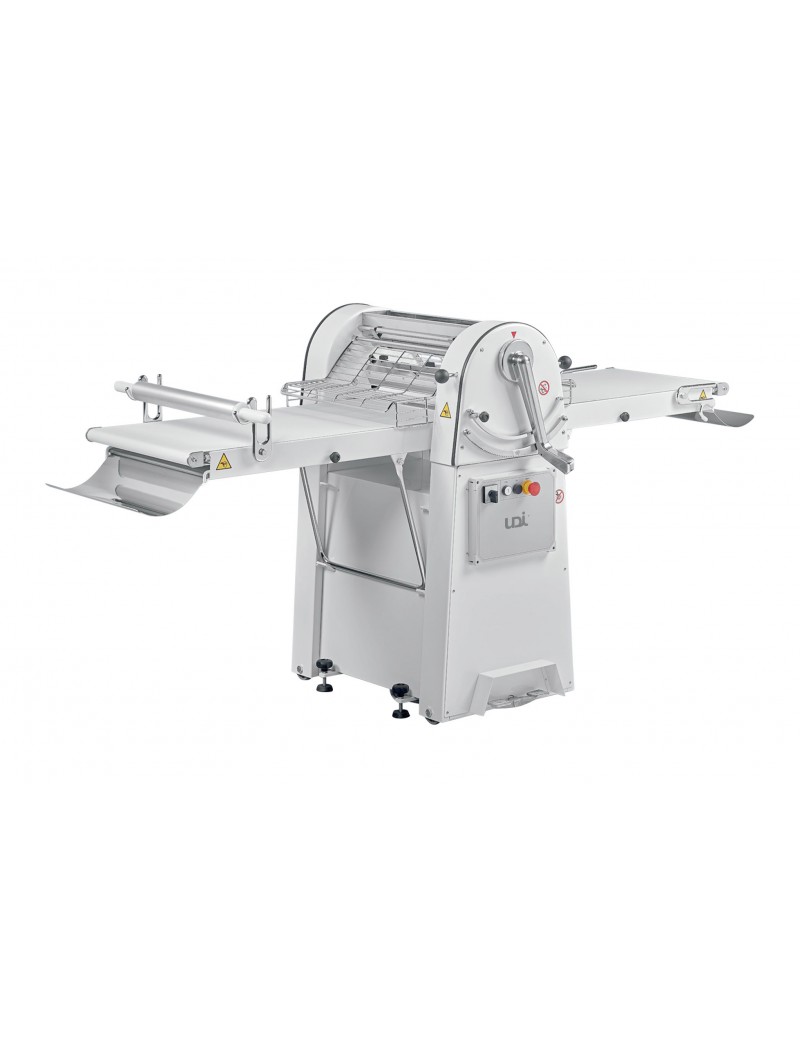

Dough laminator UD SF 500X1900 2VE 400V

Description

• It can work any type of pasta to very thin thicknesses.
• Rolling cylinders are hard chrome plated, ground and polished.
• The scrapers can be easily disassembled to allow cleaning.
• The bearings are all shielded to prevent the infiltration of flour.
• Conveyor belts are variable speed to avoid wrinkles in the sheet.
• The trays can be lifted, so as to contain the overall dimensions when the machine is at rest.
• The electrical system is low voltage and has dual control (manual and pedal).
• The protections are of the accident prevention type and are connected to the electrical system by means of limit switches.

Specification

Opened conveyor dimensions, mm: 2320x880x1100

Closed conveyor dimensions, mm: 690x880x1720

Conveyor measure, mm: 500x950

Cylinder length, mm: 500

Cylinder diameter, mm: 60

Cylinder opening, mm: 0 - 35

Net - Gross Weight, kg: 160

Power, Hp: 1

Voltage, V: 400
