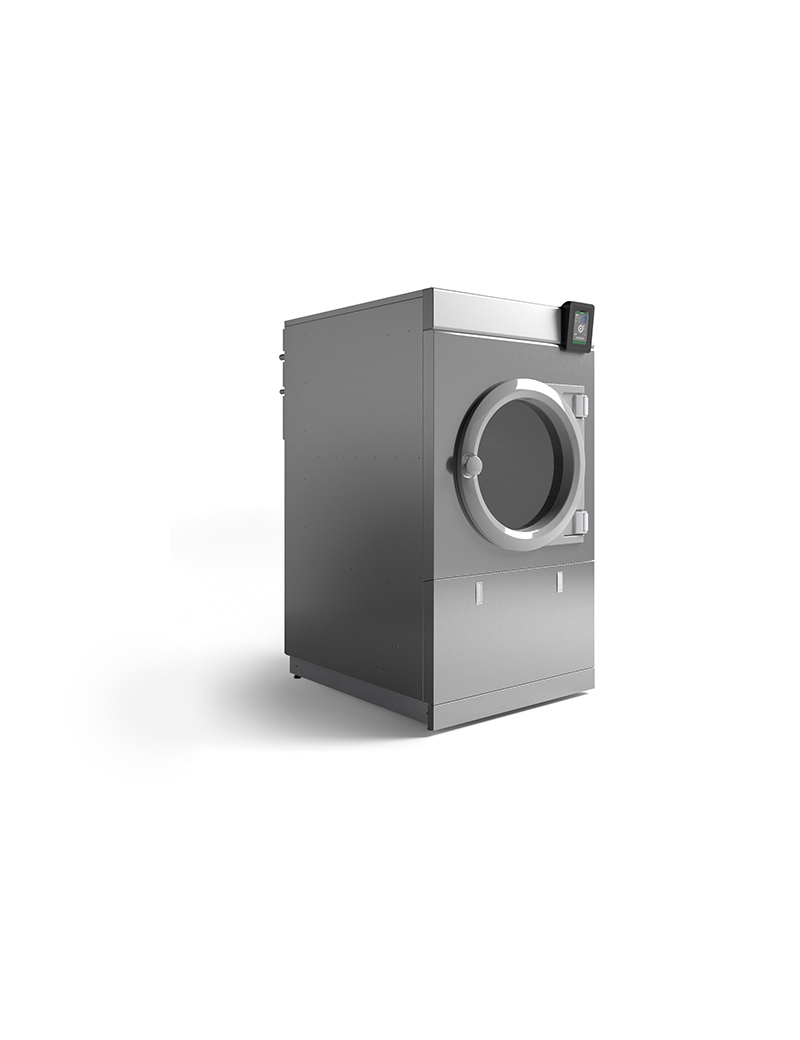

Electric tumble dryer with WAVY® control, three-phase GD 275E / GD 350E / GD 450E / GD 600E

Upgrade Your Laundry Routine with Magnus Advanced Tumble Dryers

As standard, Magnus commercial tumble dryer comes equipped with both drum inversion and a second temperature probe for maximum accuracy and reliability. The electronic control system, Wavy®, features a user interface that is adaptable to the user's needs and skills and allows for the creation and customization of unlimited programs. It also has the ability to record all working data. The machine offers unlimited drying programs that can be manually managed to optimize consumption, with times and temperatures being automatically managed. The real drum rotation is controlled by sensors and is enhanced by the aluminum coating on the drum. Multiple layers of security have been implemented, including on the drum opening, inspection filter panel, and exhaust temperature. The drum door can open a full 180°, making the loading and unloading process easy with the ability to place a trolley against the machine. Maintenance is made simple with internal components being in an ergonomic position that is easy to reach. The machine has a strong airflow and operates at an extremely silent level of less than 54 dB. The exhaust air is filtered through an inox filter, which is included as standard. The machine also features 25mm of ceramic fiber thermal insulation, ensuring low heating power and low exhaust air temperature. A self-service program is also included as a standard.

Specification

Characteristic	GD 275E	GD 350E	GD 450E	GD 600E
Technical Sheet
Capacity load (1:25); (1:20); (1:18), kg	11 kg; 14 kg; 15.3 kg	14 kg; 17.5 kg; 19.5	18 kg; 22.5 kg; 25 kg	24 kg; 30 kg; 33.3 kg
Capacity drum, mm	275 l - Ø 740x640	350 l - Ø 740x800	450 l - Ø 940x640	600 l - Ø 940x890
Door, mm	Ø 612	Ø 612	Ø 612	Ø 612
Drum rotation	40	40	40	40
Noise, dB	< 55	< 55	< 55	< 55
Dimensions (WDH), mm	795x920x1590	795x1085x1590	970x990x1810	970x1205x1810
Weight net, kg	215	225	287	296
Weight gross, kg	225	235	302	311
Control - G-WIZ	Yes	Yes	Yes	Yes
Drum/vacuum motor - Power, kW	0.37/0.75	0.37/0.75	0.55/1.1	0.55/1.1
Power supply, Hz	380 - 415 V 3 N ~ 50/60	380 - 415 V 3 N ~ 50/60	380 - 415 V 3 N ~ 50/60	380 - 415 V 3 N ~ 50/60
Washing machines - ideal with	GWH105	GWH135	GWH180	GWH240
Heating power - Electric standard, kW	15	18	15 + 15	15 + 15
Consumption of electric energy, kW/h	7.35	9.75	12.6	17.4
Consumption of evaporation, l/h	7.67	9.76	12.55	16.8
