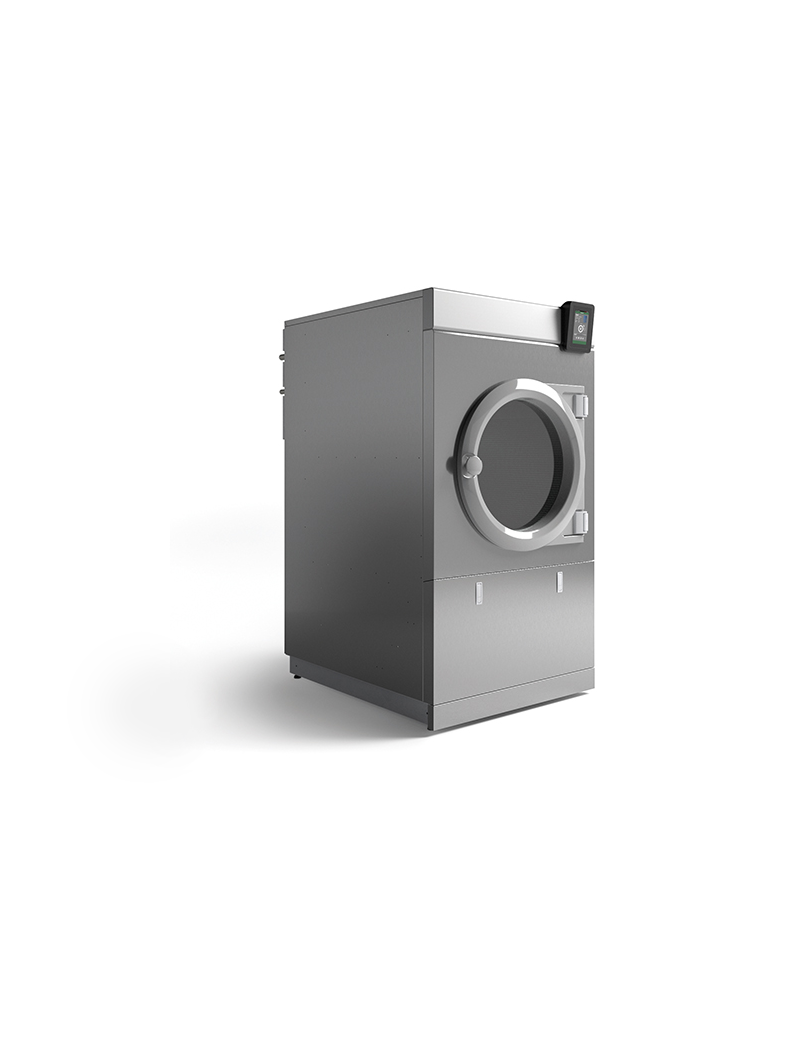

Gas tumble dryer GDZ 275G / GDZ 350G / GDZ 450G / GDZ 600G

Experience the Quality of Magnus Industrial Gas Tumble Dryers

Magnus Industrial Gas Tumble Dryer comes equipped with a second temperature probe as standard, ensuring accurate and reliable readings. The real drum rotation is controlled by sensors, which are further enhanced by the aluminum coating on the drum. Multiple layers of security have been implemented, including on the drum opening, inspection filter panel, and exhaust temperature. The drum door can open a full 180°, making the loading and unloading process a breeze with the ability to place a trolley against the machine. Maintenance is made easy with internal components being in an ergonomic position that is easy to reach. The machine offers up to 10 drying programs that can be manually managed to optimize consumption, with times and temperatures being automatically managed. The electronic control system, G-Wiz®, allows for the creation and customization of up to 10 drying programs. The machine has a powerful air flow and operates at an extremely silent level of less than 54dB. The exhaust air is filtered through an inox filter, which is included as standard. The machine also features 25mm of ceramic fiber thermal insulation, ensuring low heating power and low exhaust air temperature. A self-service program is also included as standard.

Specification

Characteristic	GDZ 275G	GDZ 350G	GDZ 450G	GDZ 600G
Technical Sheet
Capacity load (1:25); (1:20); (1:18), kg	11 kg; 14 kg; 15.3 kg	14 kg; 17.5 kg; 19.5	18 kg; 22.5 kg; 25 kg	24 kg; 30 kg; 33.3 kg
Capacity drum, mm	275 l - Ø 740x640	350 l - Ø 740x800	450 l - Ø 940x640	600 l - Ø 940x890
Door, mm	Ø 612	Ø 612	Ø 612	Ø 612
Drum rotation	40	40	40	40
Noise, dB	< 55	< 55	< 55	< 55
Dimensions (WDH), mm	795x920x1590	795x1085x1590	970x990x1810	970x1205x1810
Weight net, kg	205	215	277	296
Weight gross, kg	215	225	292	311
Control - G-WIZ	Yes	Yes	Yes	Yes
Drum/vacuum motor - Power, kW	0.75	0.75	1.1	1.1
Power supply, Hz	380 - 415 V 3 N ~ 50/60	380 - 415 V 3 N ~ 50/60	380 - 415 V 3 N ~ 50/60	380 - 415 V 3 N ~ 50/60
Washing machines - ideal with	GWH105	GWH135	GWH180	GWH240
Heating power - Gas (double stage), kW	13 - 15	13 - 18	16 -24	16 -24
Consumption of electric energy, kW/h	0.5	0.5	0.5	0.5
Consumption of evaporation, l/h	8.7	12	14.21	20.6
Natural gas G20 consumption, m3/h	1.9	1.9	2.6	2.6
LPG gas G31 consumption, kg/h	0.8	0.8	1	1
Gross weight, kg	215	225	292	311
