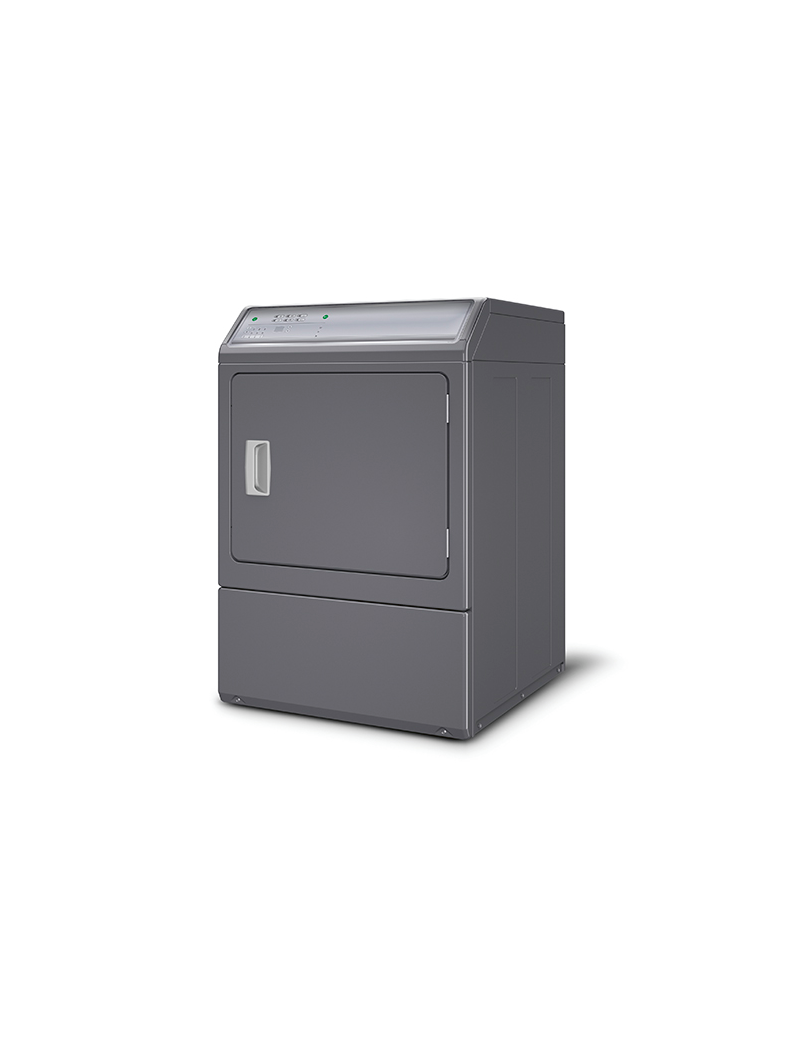

Professional electric tumble dryer GDF 200E MN
  • Professional electric tumble dryer GDF 200E MN

Professional electric tumble dryer GDF 200E MN - single-phase

The principles of work for an industrial tumble dryer generally involve the following steps:

  1. Wet laundry is loaded into the dryer drum, which is typically made of stainless steel.
  2. The drum is rotated to evenly distribute the laundry and allow it to come into contact with heated air.
  3. A heating element warms up the air, which is then blown through the drum by a fan.
  4. As the air passes through the drum, it absorbs moisture from the laundry and exits the dryer through a lint filter.
  5. The dryer may also have a cooling system to lower the temperature of the air before it is re-circulated back into the drum.
  6. The drying process continues until the laundry reaches the desired level of dryness, as determined by sensors or a set timer.
  7. Once the drying cycle is complete, the drum stops rotating and the dryer door is opened to allow the laundry to be removed.

Specification

Dimensions (WDH): 683x711x1126 mm

Total power: 5.6 kW

Heating power: 5.35 kW

Power supply: 230V/1/50-60 Hz

Drum dimensions: Ø 655x550 mm

Drum volume: 198 l

Door: 530x425 mm

Load capacity (1:20): 9.9 kg

Drum speed: 50 rpm

Weight: 61 kg
