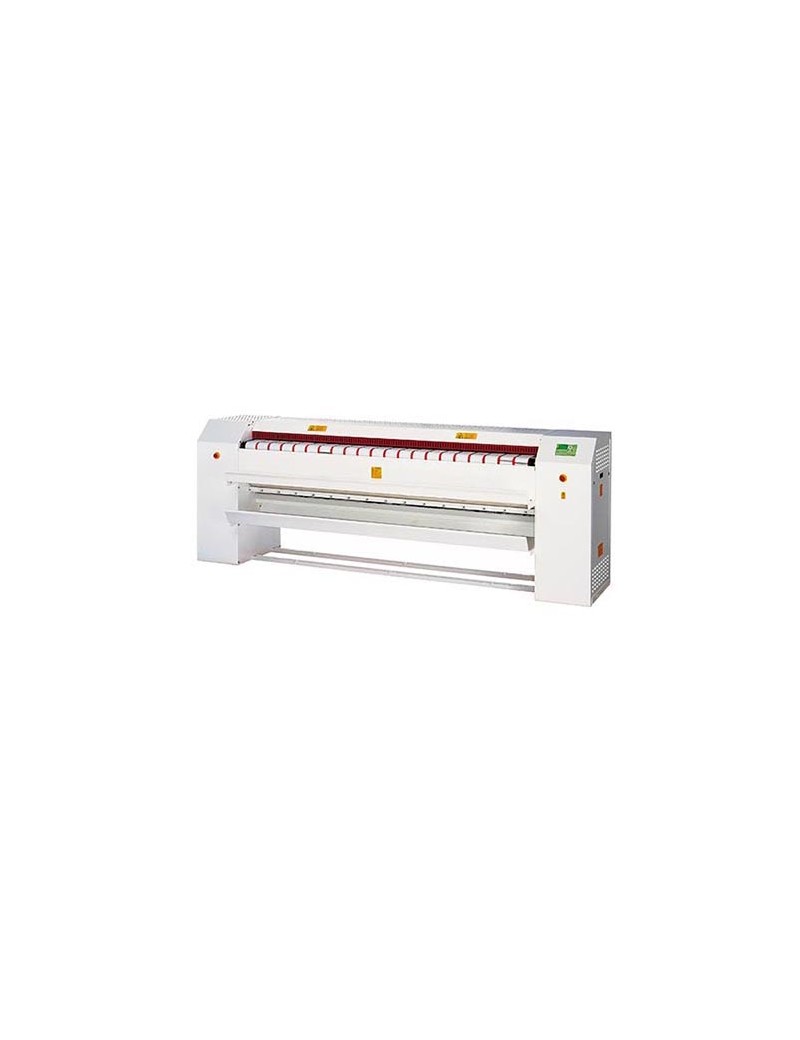

Automatic roller ironer with steam heating S-250/40 V, Ø 400x2500 mm

Choose an automatic roller ironer for better ironing results

We´d like to introduce you to our automatic professional roller ironer with a specially-processed aluminum basin. This machine is designed with energy conservation in mind and is built to last. The epoxy-powder-coated steel sheet structure provides a strong and durable foundation for the machine.

One of the key features of this ironer is its ability to adapt automatically to the size of the roller and the thickness of the linen. This ensures that the ironing quality remains constant over time. The roller is also supported by bearings for added stability.

The front loader design allows for the ironer to be installed against a wall, making it easy to use in any setting. A finger safety band protects the user in the event of any mismaneuvers. An electronic control unit monitors all machine running parameters and optimizes performance and energy consumption. Additionally, a safety thermostat prevents overheating.

For added convenience, the ironer has a wide pedal for easy press movement control and a manual device for lifting the basin in power-down events. It also has a pedal that allows you to momentarily stop the roller rotation so you can easily spread the linen over the feeder. The basin pressure can also be regulated to optimize ironing quality in any situation.

Thermal insulation is achieved through a thick ceramic fiber coating, which helps to maximize performance and minimize heat loss. This results in lower running costs and more comfortable working conditions. The Maxpress-system roller coating and nomex felt provide the best contact between the press and the roller over time.

To keep the air inside the roller clean, the ironer is equipped with a flue exhauster and automatic flue extraction. The roller speed can also be easily controlled. For those who prefer thermal oil heating, we offer a version of the ironer with that option as well.

Thank you for considering our specially-processed aluminum basin ironing press. We believe it is the perfect machine for anyone looking to conserve energy and achieve high-quality ironing results.

Specification

Cylinder: Ø 400x2500

Speed cylinder: 1.8 - 4.4 m/min

Noise: 50 dB

Residual humidity 40 - 45%: 55 kg/h

Dimensions (WDH): 3415x940x1202 mm

Weight net: 663 kg

Weight gross: 748 kg

Cylinder motor: 0.92 kW

Inverter: Sim

Vacuum motor: 0.18 kW

Heating power: 37.2 kW

Motor power: 1.47 kW

Energy consumption: 1 kW/h

Steam consumption: 60 - 70 kg/h

Steam pressure: 10 - 12 bar

Steam connection: 3/4 inch IN/OUT
