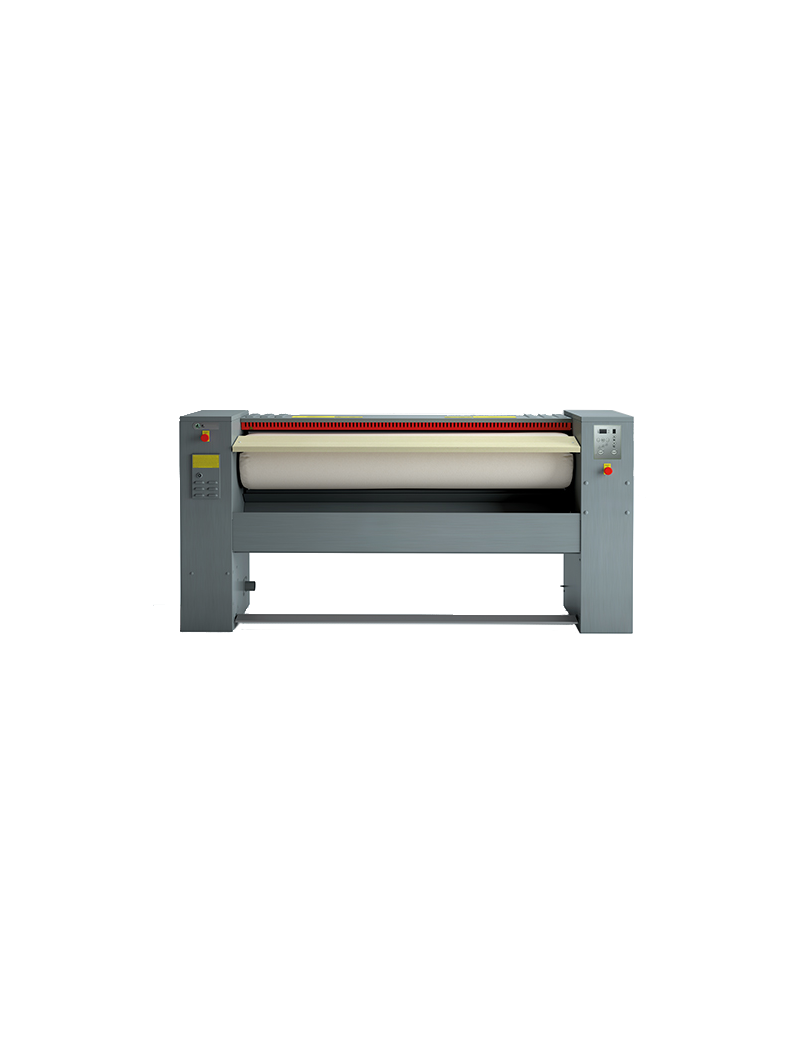

Automatic roller ironer with roller speed control S-200/30 AVL - Vapor
  • Automatic roller ironer with roller speed control S-200/30 AVL - Vapor

Automatic roller ironer with roller speed control S-200/30 AVL - Vapor, Ø 300x2000 mm

Description
  • Specially-processed aluminum basin that ensures long life and energy conservation.
  • Roller supported by bearings.
  • Front loader use: The ironer can be installed against a wall.
  • Finger safety band protects the user in case of mismanouver.
  • Electronic control unit that monitor all machine running parameters and optimizes performance and energy consumption.
  • Safety thermostat avoids undesirable overheating.
  • Wide pedal for press movement control.
  • Manual device for lifting the basin in power down events.
  • Automatic press operation.
  • V = Roller speed control.
  • AV = Roller speed control + vacuum + Nomex fabric.
  • AVL = Roller speed control + vacuum + Nomex fabric and Maxpress coating.

Specification

Dimensions (WDH): 2600x500x1100 mm

Total power: 0.48 kW

Steam heating: 10 - 12 bar

Power supply: 400V/3/50 Hz

Capacity (H.R. 10-15%); (H.R. 20-25%): 52/79 kg/h; 38/55 kg/h, 25/32 kg/h

Roller: Ø 300x2000 mm

Speed roller: 2 - 4 m/min

Air consumption: 200 m3/h

Steam consumption: 40 kg/h

Flue outlet: 55 mm

Net weight: 294 kg
