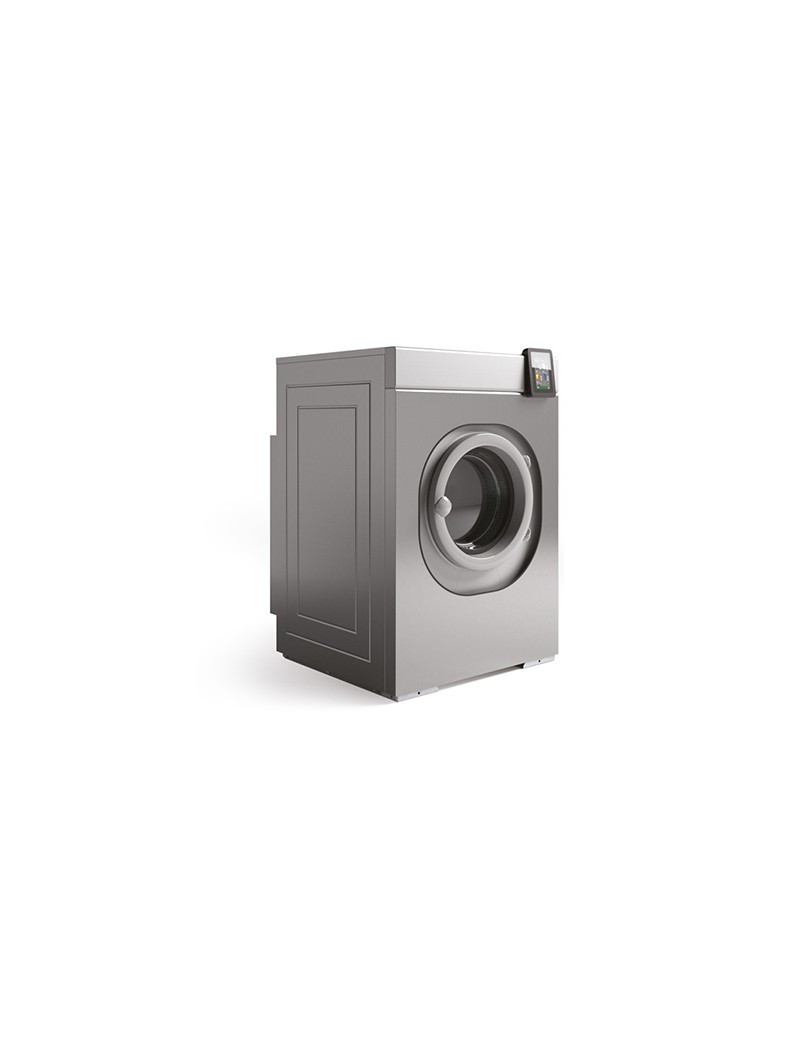

High spin washing machine GWH 180E / 240E / 280E
  • High spin washing machine GWH 180E / 240E / 280E

High spin washing machine GWH 180E / 240E / 280E

Simple facts to remind you why the industrial washing machine is a crucial need for your commercial laundry

  1. Industrial washing machines are designed for heavy-duty cleaning and are typically used in commercial or industrial settings, such as laundromats, hotels, hospitals, and restaurants.
  2. These machines are generally larger and more powerful than residential washing machines, with a capacity ranging from 20 to 100 kilograms (kg) or more.
  3. Industrial washing machines are equipped with features that allow for efficient and effective cleaning, such as high-pressure nozzles, multiple wash cycles, and large loading capacity.
  4. Industrial washing machines use a variety of cleaning agents and methods, including detergents, bleach, hot water, and steam, to thoroughly clean and sanitize a wide range of items, including clothing, linens, and other materials.
  5. Industrial washing machines are built to withstand the demands of commercial use and are generally more durable and reliable than residential models.
  6. These machines are often used in conjunction with other industrial equipment, such as dryers and ironers, to complete the laundry process.
  7. Proper maintenance and upkeep are important to ensure the longevity and efficiency of industrial washing machines.
  8. Some key considerations when purchasing an industrial washing machine include the size and capacity of the machine, the type of cleaning agents and methods used, and the overall cost and efficiency of the machine.

Specification

Characteristic

GWH 180E

GWH 240E

GWH 280E

Technical Sheet

Capacity Load, min. - max. (1:10 / 1:9)

9 - 18 kg / 10 - 20 kg

12 - 24 kg / 13.4 - 26.7 kg

14 - 28 kg / 15.6 - 31.1 kg

Capacity drum

180 l - Ø 730x450 mm

240 l - Ø 730x540 mm

280 l - Ø 730x620 mm

Door

Ø 460 mm

Ø 460 mm

Ø 460 mm

Spin R.P.M

20 - 60 / 970

20 - 60 / 970

20 - 60 / 915

Spin G Factor

400

400

350

Noise

<65 dB

<65 dB

<65 dB

Dimensions (WDH)

970x1000x1460 mm

970x1105x1460 mm

970x1247x1460 mm

Weight net

385 kg

435 kg

475 kg

Weight gross

400 kg

455 kg

520 kg

Heating power - supplied with hot water only

Yes

Yes

Yes

Heating power - electric standard

18 kW

18 kW

22 kW

Motor - electronic control

Yes

Yes

Yes

Motor - power

3.36 kW

4.6 kW

4.6 kW

Power supply - standard

380 - 415 V 3 N ~ 50/60 Hz

380 - 415 V 3 N ~ 50/60 Hz

380 - 415 V 3 N ~ 50/60 Hz

Consumption - hot water

38.5 l

51.4 l

61.3 l

Consumption - warm water

38.5 l

51.4 l

61.3 l

Consumption - cold water

77 l

102.5 l

122.4 l

Consumption - electric energy

5.168 kW/h

6.45 kW/h

7.847 kW/h

Consumption - cycle length

56 min

58 min

60 min

Control - Wavy

Yes

Yes

Yes

Electric water drain

3"

3"

3"

Chemical supply - soap hopper

Yes

Yes

Yes

Chemical supply - ready for liquid soap supply

Yes

Yes

Yes

Packaging dimensions

1065x1070x1610 mm

1080x1100x1600 mm

1100x1300x1600 mm

Gross weight

390 kg

455 kg

450 kg
