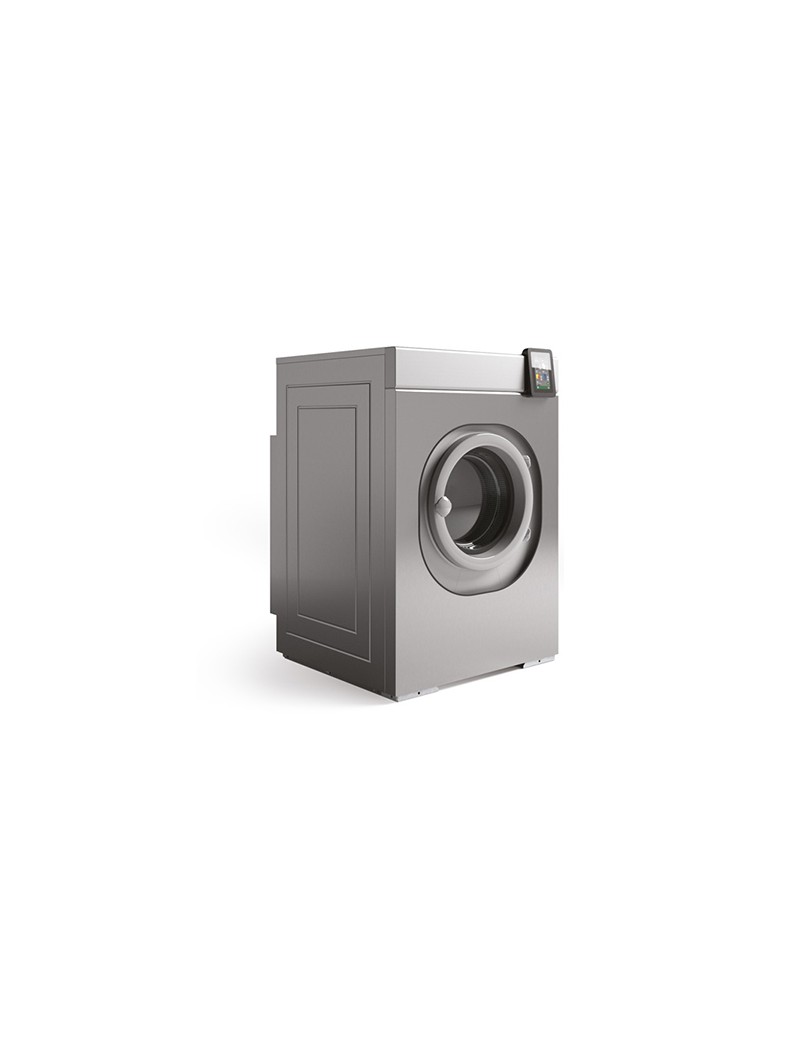

High spin washing machine GWH 80E / 105E / 135E
Convincing key points why the industrial washing machine Magnus is a great choice for your laundry
- Electronic control Wavy®: user interface that can be tailored to the needs and skills of the user; unlimited ability to create and customize programs. The ability to record all working data.
- Drum speed electronically managed (inverter), with sensor-controlled drum rotation.
- Redundant securities tested by a certified laboratory.
- Machine frame, designed to fix the machine in place without movement.
- Drum door opening 180°: easy loading and unloading process by placing a trolley against the machine.
- Easy and quick maintenance: internal components in an ergonomic position that are easy to reach.
- Patented weighing system to automatically weigh the linen and regulate consumptions accordingly.
- 3 standard water inlets: hot, hard cold, soft cold, automatically managed and mixed by Wavy®.
- 3 standard discharge pipes with 90° bend and 3 standard water loading pipes ¾ (Hot water, cold water, soft water).
- Self-Service program as standard.
- Optional: Payment system - electromechanical coin meter, electronic coin meter, and central payment system.
- Ready for 13 optional liquid detergent inlets, dispenser with 4 compartments ergonomically placed as standard.
- Control card for 1 24Vac or 24Vrac pump (A104).
- Optional A103/A108 also controls detergent consumption.
- The data refers to the 60° C wash cycle reported on the standard ISO 9398.
Specification
Characteristic |
GWH 80E |
GWH 105E |
GWH 135E |
Technical Sheet |
|||
Capacity Load, min. - max. (1:10 / 1:9) |
3.75- 7.5 kg / 4.1 - 8.3 kg |
5.2 - 10.5 kg / 5.8 - 11.7 kg |
6.75 - 13.5 kg / 7.5 - 15 kg |
Capacity drum |
75 l - Ø 520x350 mm |
105 l - Ø 620x350 mm |
135 l - Ø 620x450 mm |
Door |
Ø 330 mm |
Ø 410 mm |
Ø 410 mm |
Spin R.P.M |
20 - 60 / 1165 |
20 - 60 / 1075 |
20 - 60 / 1075 |
Spin G Factor |
400 |
400 |
400 |
Noise |
<65 dB |
<65 dB |
<65 dB |
Dimensions (WDH) |
795x780x1245 mm |
795x780x1245 mm |
795x935x1245 mm |
Weight net |
190 kg |
215 kg |
260 kg |
Weight gross |
205 kg |
240 kg |
280 kg |
Heating power - supplied with hot water only |
Yes |
Yes |
Yes |
Heating power - electric standard |
6 kW |
9 kW |
12 kW |
Motor - electronic control |
Yes |
Yes |
Yes |
Motor - power |
1.14 kW |
1.66 kW |
2.37 kW |
Power supply - standard |
380 - 415 V 3 N ~ 50/60 Hz |
380 - 415 V 3 N ~ 50/60 Hz |
380 - 415 V 3 N ~ 50/60 Hz |
Consumption - hot water |
17.8 l |
21.5 l |
29 l |
Consumption - warm water |
17.8 l |
21.5 l |
29 l |
Consumption - cold water |
37.6 l |
43 l |
58 l |
Consumption - electric energy |
1.563 kW/h |
2.332 kW/h |
3.125 kW/h |
Consumption - cycle length |
55 min |
55 min |
56 min |
Control - Wavy |
Yes |
Yes |
Yes |
Electric water drain |
3 |
3 |
3 |
Chemical supply - soap hopper |
Yes |
Yes |
Yes |
Chemical supply - ready for liquid soap supply |
Yes |
Yes |
Yes |
Packaging dimensions |
710x780x1130 mm |
900x900x1400 mm |
900x1000x1400 mm |
Gross weight |
205 kg |
231 kg |
280 kg |
