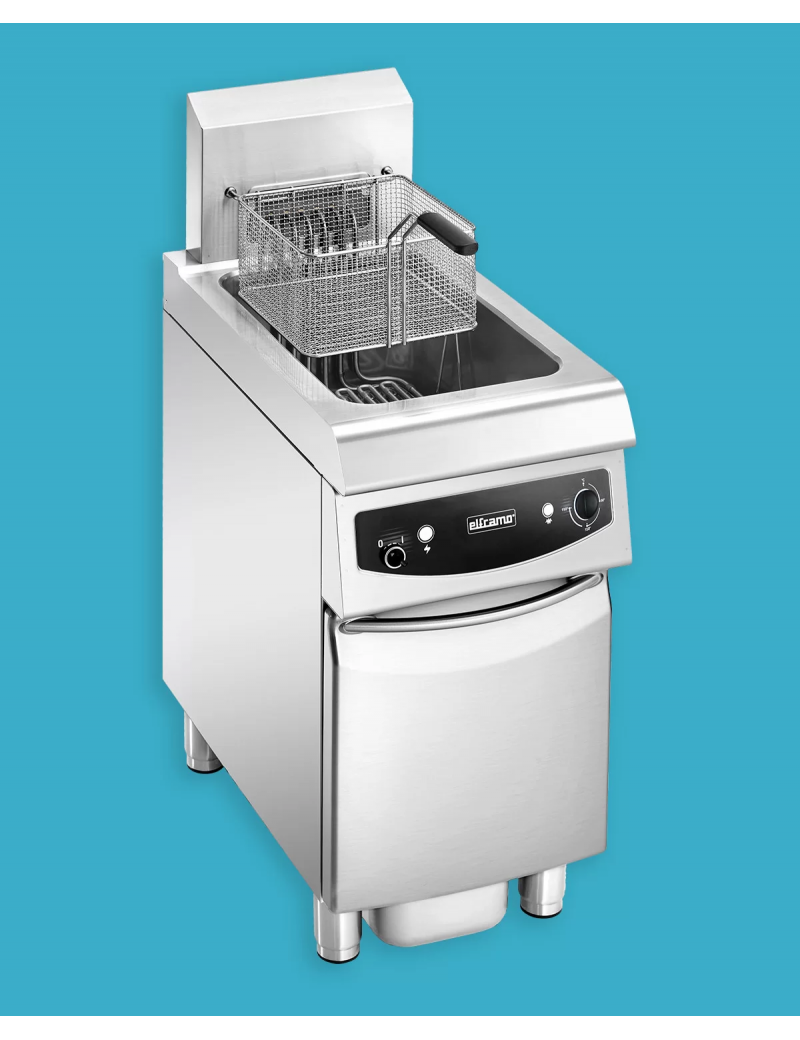

Electric fryer NE-M 120 / NE-M 200

Features
  • Stainless steel frame in AISI 304
  • Front-mounted controls that allow an easier and more secure use of the fryer
  • Pressed “monobloc” tank in stainless steel AISI 304 with a wide cold zone designed to keep the oil clean by keeping the frying deposits away from the hot area
  • Spacious expansion area to prevent oil spills
  • Armored tiltable heating elements to simplify the cleaning of the tank
  • Safety thermostat
  • Adjustable feet in Stainles Steel
  • Simplified maintenance thanks to the individually removable panels
  • Eco-friendly materials, recyclable up tp 95%

Characteristic

NE-M 120

NE-M 200

Absorbed power (kW)

6

9

10

16

Std. input voltage tension (V)

 400V/3N/50Hz 400V/3N/50Hz

Oil level to fry (l)

 14 20

Oil collecting bin capacity (l)

 21 21

Production with frozen potatoes (kg/h)

~15 (kW 6)

~20 (kW 9)

~22 (kW 10)

~28 (kW 16)

Full basket (mm)

 240x280x120h 260x280x150h

Basket ½(mm) (on request)

 -

n°2

120x280x150h

Tank filter

 On request On request

Oil filter container

 On request On request

Rollers kit for fryer handling

 On request On request

Dimensions WxDxH (mm)

NE-M 120-200 size

Net/Gross weight (kg)

 42/52 45/55
Acessories for NE-M 120 model
  • Oil bin filter
  • Supplement for 9 kW – 230V/3N
  • Trolley with wheels for oil container
Acessories for NE-M 200 model
  • Model with 2 basket
  • Supplement for 10 kW – 230V/3N
  • Supplement for 16 kW – 230V/3N
  • Oil bin filter
  • Trolley with wheels for oil container
  • Ground filter
