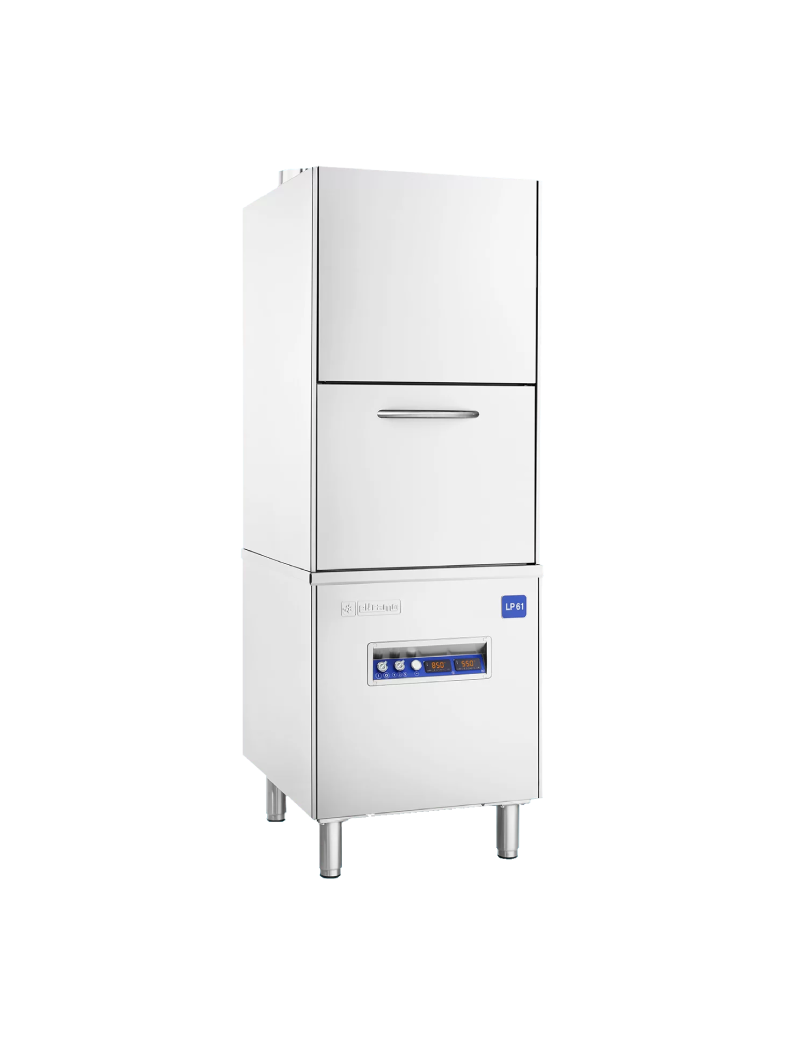

Warewasher LP 61

Description

• AISI 304 stainless steel frame and chassi, double-skinned structure
• Standard thermo insulation of the frame, acoustic insulation on request
• Electromechanical controls: boiler and tank temperature setting with digital thermo controls
• Washing/rinsing chamber with no welding, to avoid dirt stagnation, unique mould tank
• Tank with inclined bottom and widely rounded corners to avoid residual deposit
• Stainless steel surface filters in the tank
• Stainless steel rotating washing and rinsing arms
• Hydraulic rinse aid doser and peristaltic detergent doser

Specification

Range: Electromechanical controls

Basket size: 700×550 mm

Basket/hour or Plate/hour output: 30-15-10/h – 120-60-40/h (baking trays)

Number of cycles: 3

Power - Dishwashers: Electrical

Size (WxHxD): 675×1.851×842 mm

Net/Gross weight: 158 kg – 176 kg

Cycle lengths: 120/240/360”

Power rating: 400V 3N

Max absorbed power: 10.5 kW

Pump power: 2.2 kW

Power of the boost pump: 0.37 kW

Boiler heating element power: 8.3 kW

Tank heating element power: 5.2 kW

Water consumption: 3.5 l

Main water temperature: 45 ÷ 60 °C

Baskets: n. 2 – cod. 00067029 + cod. 00059360
